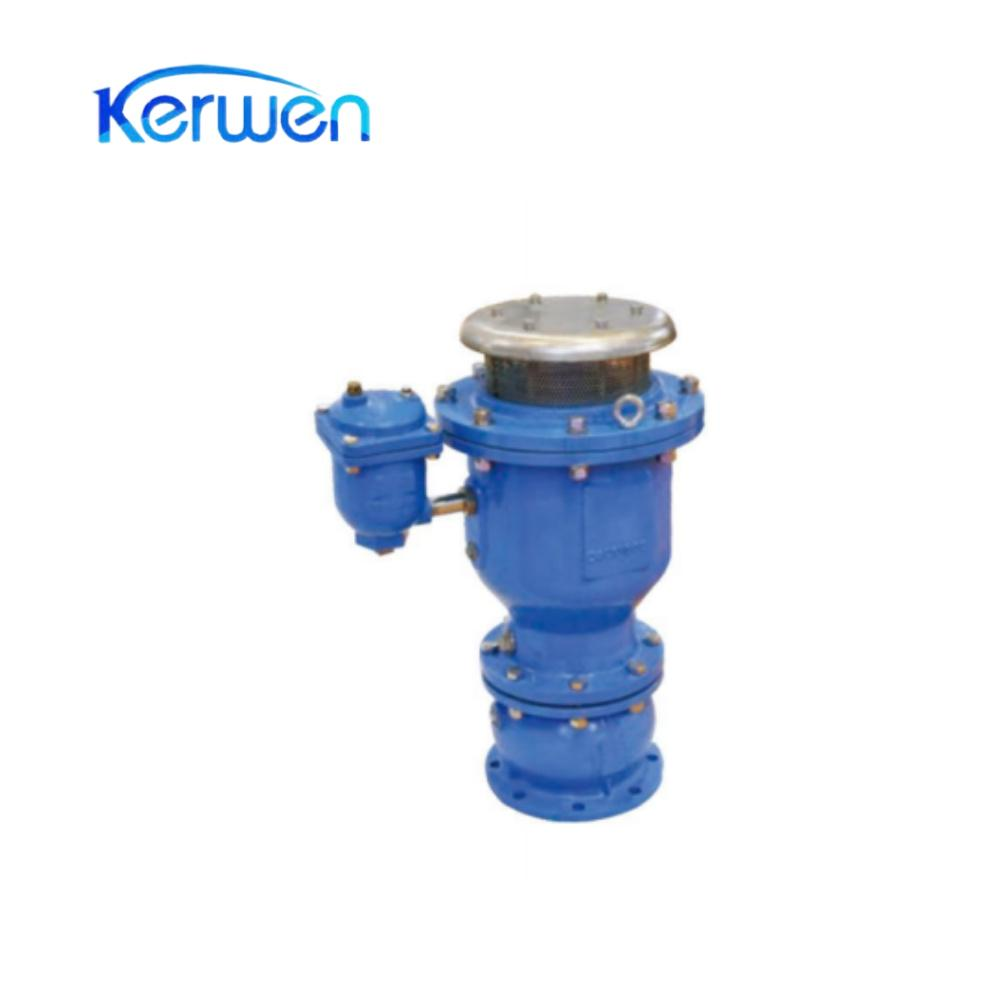

Высокоскоростной выпускной клапан против водяного молота
|
DN |
PN10 |
PN16 |
H |
H1 |
||||||||
|
D |
D1 |
D2 |
n-d0 |
b |
D |
D1 |
D2 |
n-d0 |
b |
|||
|
50 |
165 |
125 |
99 |
4-19 |
19 |
165 |
125 |
99 |
4-19 |
19 |
260 |
123 |
|
65 |
185 |
145 |
118 |
4-19 |
19 |
185 |
145 |
118 |
4-19 |
19 |
300 |
135 |
|
80 |
200 |
160 |
132 |
8-19 |
19 |
200 |
160 |
132 |
8-19 |
19 |
340 |
150 |
|
100 |
220 |
180 |
156 |
8-19 |
19 |
220 |
180 |
156 |
8-19 |
19 |
415 |
160 |
|
125 |
250 |
210 |
184 |
8-19 |
19 |
250 |
210 |
184 |
8-19 |
19 |
495 |
185 |
|
150 |
285 |
240 |
211 |
8-23 |
19 |
285 |
240 |
211 |
8-23 |
19 |
560 |
215 |
|
200 |
340 |
295 |
266 |
8-23 |
20 |
340 |
295 |
266 |
8-23 |
20 |
680 |
245 |
|
250 |
395 |
350 |
319 |
12-23 |
22 |
405 |
355 |
319 |
12-28 |
22 |
780 |
270 |
|
300 |
445 |
440 |
370 |
12-23 |
24.5 |
460 |
410 |
370 |
12-28 |
24.5 |
970 |
290 |
